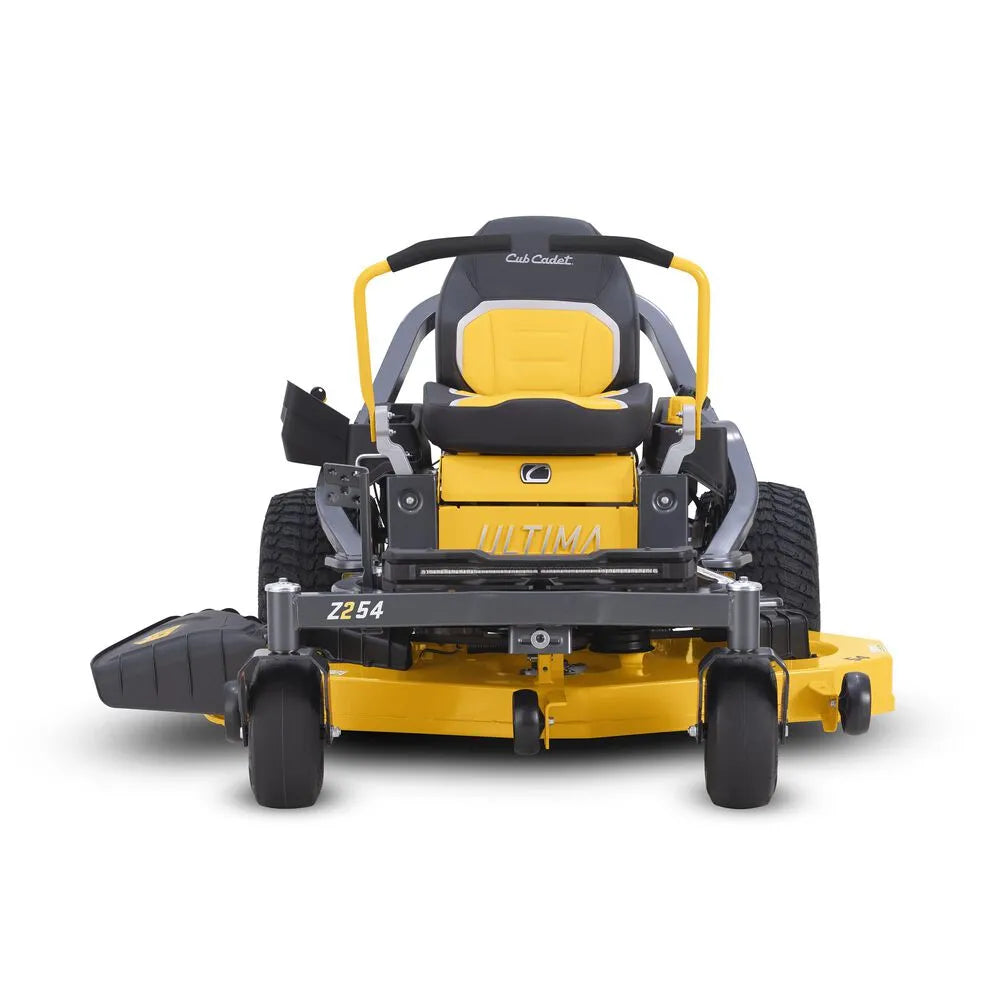

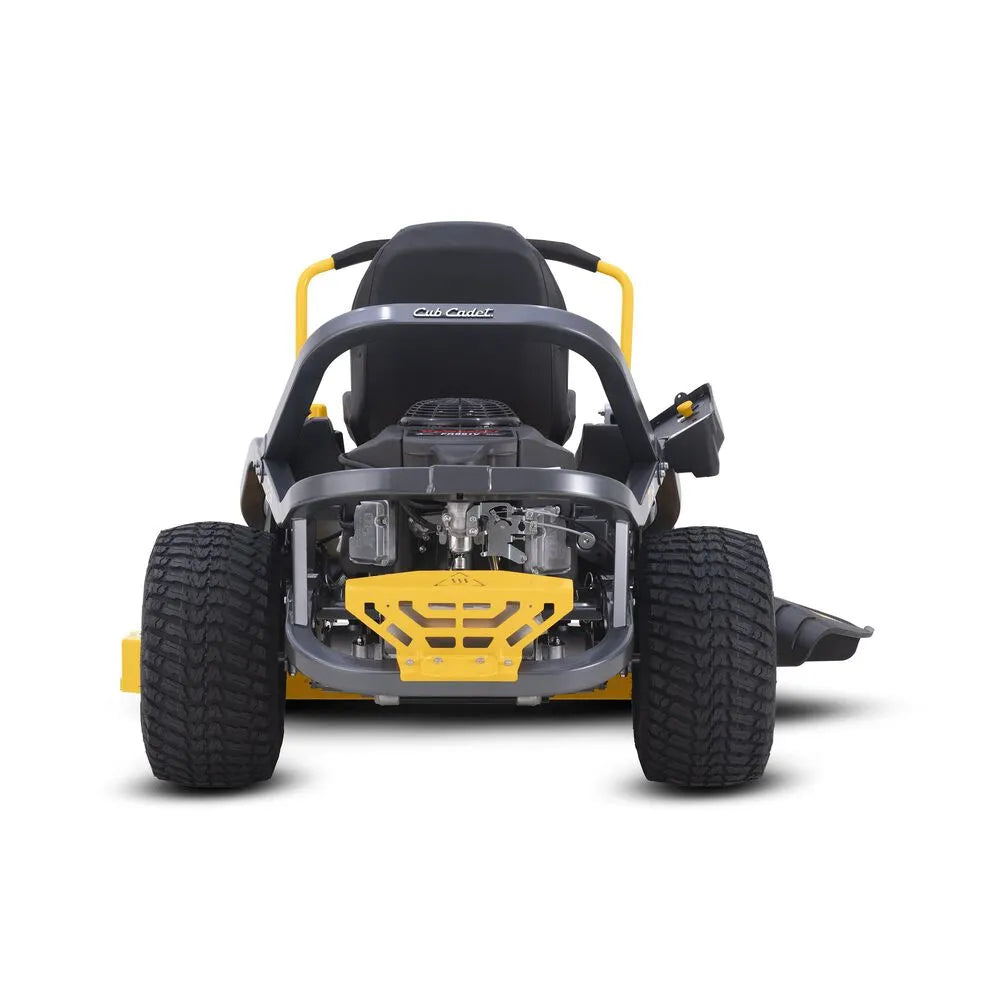

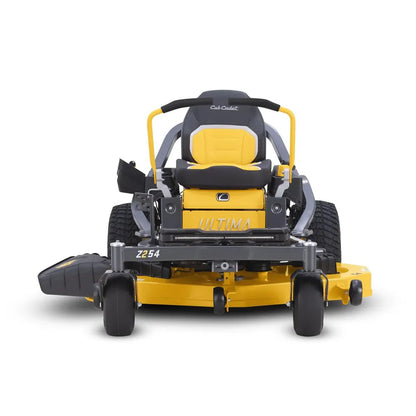

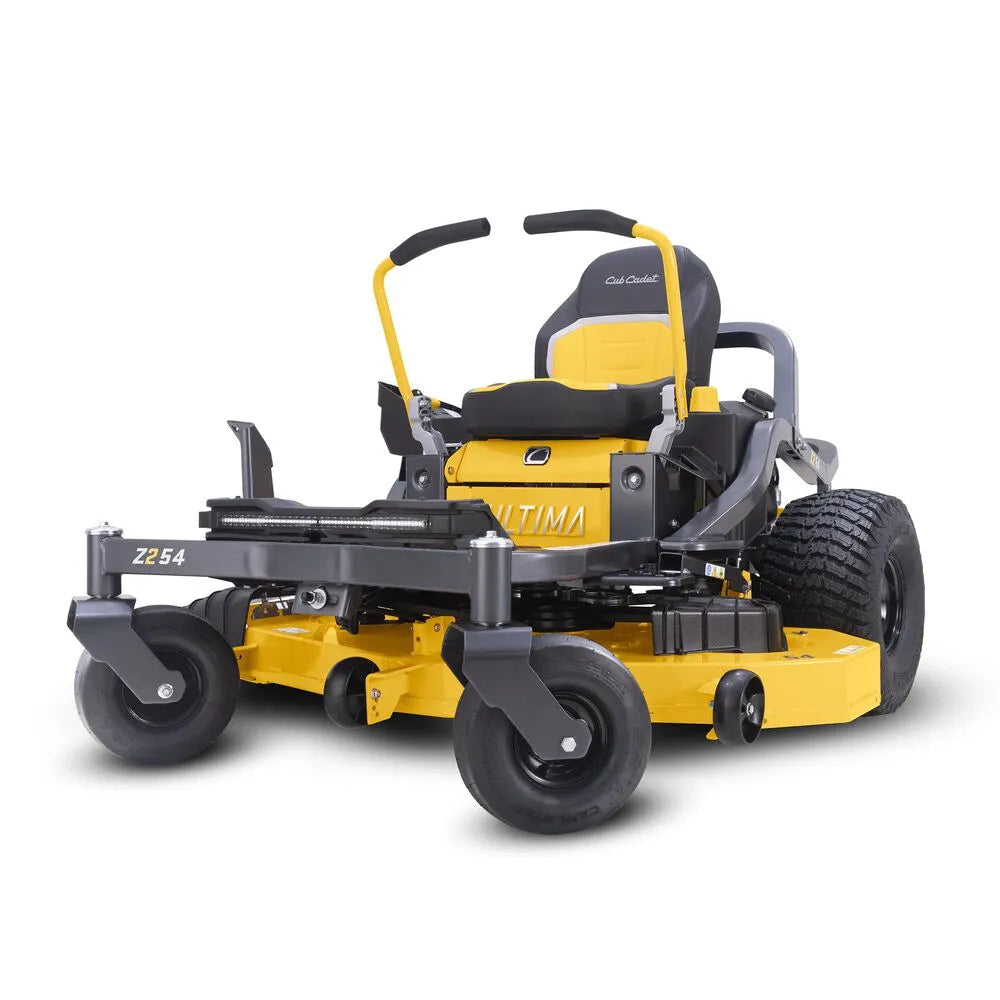

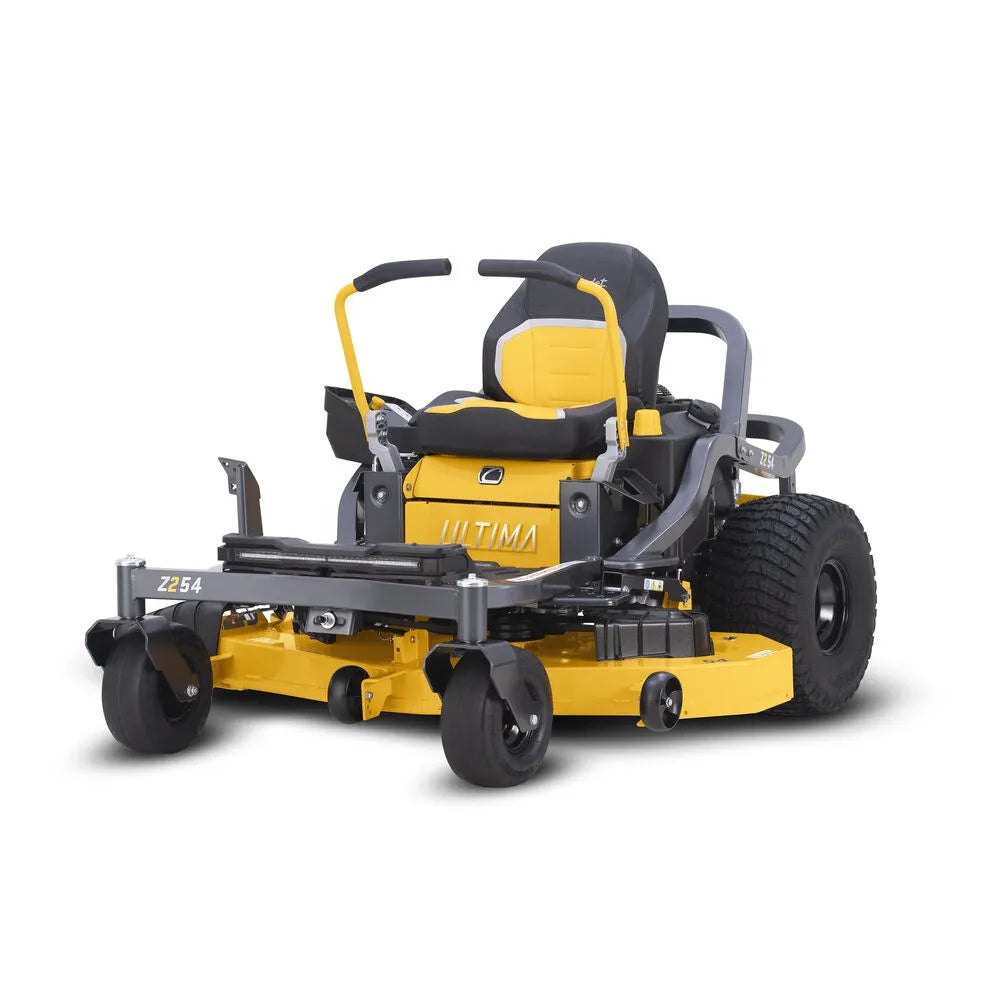

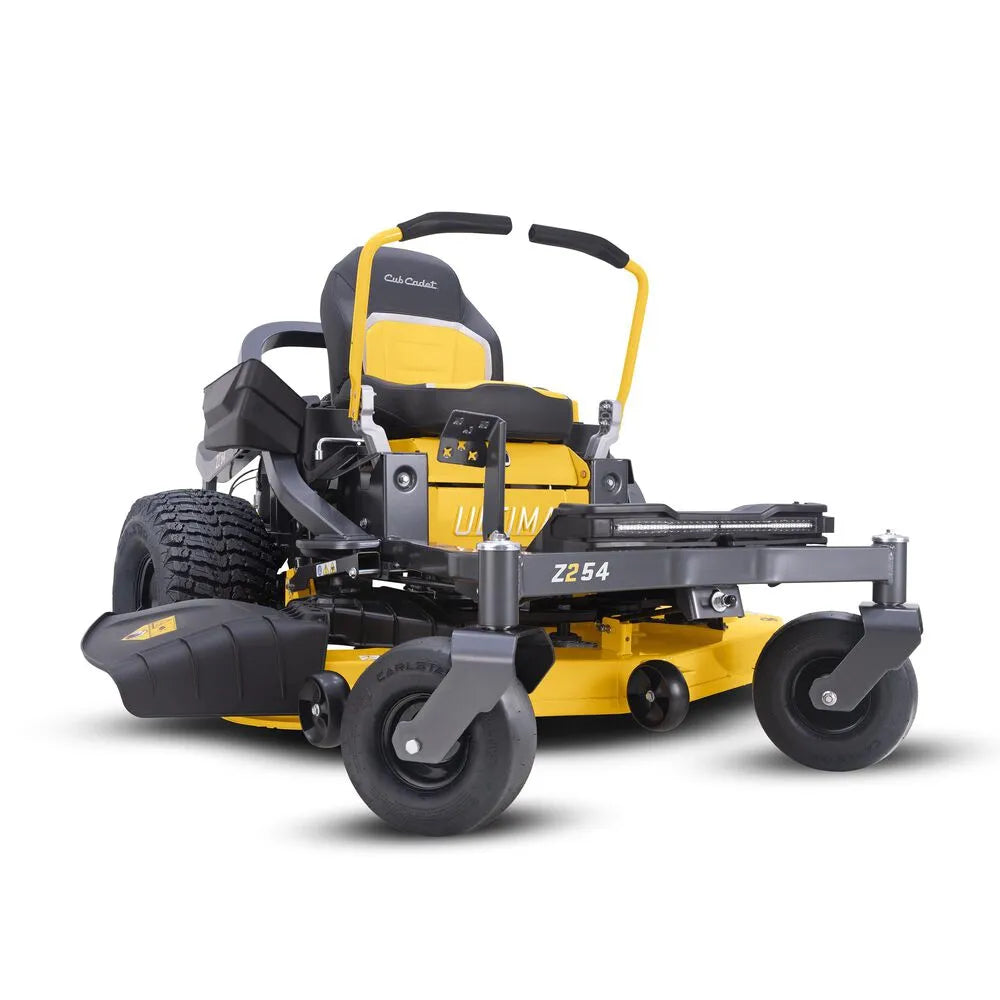

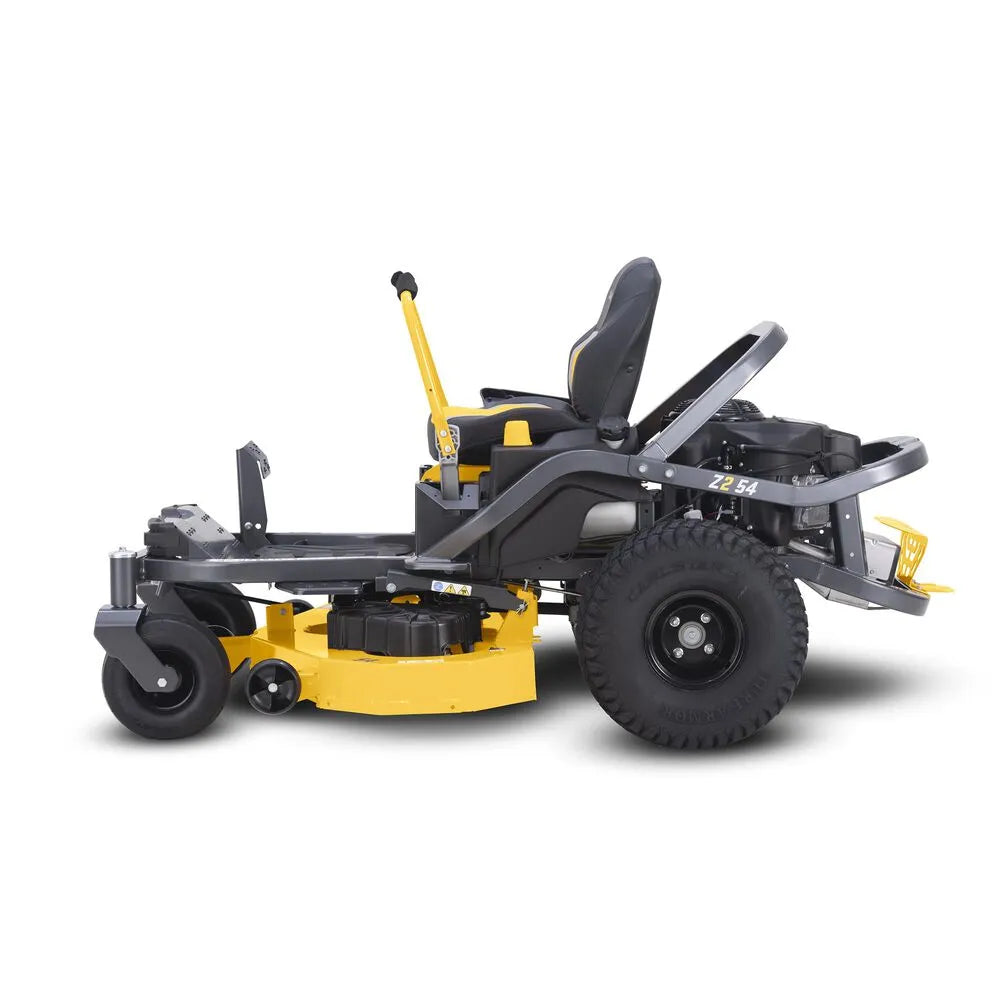

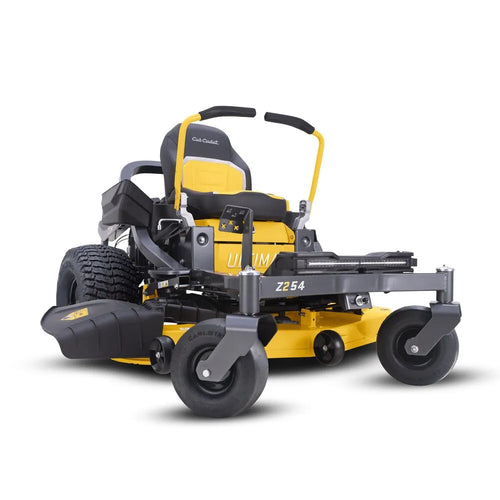

Z2 54 Ultima Series Z

The Cub Cadet Ultima Series Z2 54 Zero-Turn Mower is designed for homeowners who need efficient, reliable performance when maintaining large lawns. It features a 23 HP Kawasaki engine, a 54-inch fabricated steel cutting deck, and zero-turn maneuverability to help reduce mowing time and navigate around trees, landscaping, and other obstacles.

Powered by a 726cc Kawasaki FR-series V-twin engine, the Z2 54 delivers dependable performance for regular lawn maintenance. Its dual Hydro-Gear EZT 2200 hydrostatic transmissions provide smooth operation, with speeds of up to 7 mph forward and 3.5 mph in reverse.

The 54-inch AeroForce™ fabricated steel deck uses three blades to deliver an even cut with fewer clumps and missed grass. Its cutting height adjusts from 1 to 4.5 inches across 15 positions, allowing you to adapt to different lawn conditions. The foot-operated deck lift and dial adjustment make changing the cutting height convenient.

A continuous 2 x 2-inch tubular steel frame provides strength and stability. Additional features include Turf Armor® tires for traction, an LED light bar for improved visibility, a comfortable 20-inch high-back seat, ergonomic lap-bar grips, and a rear tow hitch for compatible attachments.

Specifications

• Brand: Cub Cadet
• Series: Ultima Series Z
• Model: Z2 54
• Model Number: 17RIEAEM010
• Mower Type: Zero-Turn Riding Lawn Mower
• Engine: Kawasaki FR Series
• Engine Model Number: 691V
• Engine Displacement: 726cc
• Engine Power: 23 HP
• Engine Type: V-Twin
• Starting System: Electric Start
• Fuel Type: Gasoline
• Fuel Tank Capacity: 3.5 gallons
• Transmission: Dual Hydro-Gear EZT 2200
• Maximum Forward Speed: 7 mph
• Maximum Reverse Speed: 3.5 mph
• Cutting Width: 54 inches
• Deck Construction: Fabricated Steel
• Deck Material: 11-gauge steel
• Number of Blades: 3
• Cutting Height Range: 1–4.5 inches
• Cutting Height Positions: 15
• Frame: 2 x 2-inch tubular steel
• Rear Tires: 20 x 10-8 inches
• Front Tires: 11 x 6-5 inches
• Headlights: LED light bar
• Hour Meter: Yes
• Rear Tow Hitch: Yes
• Warranty: 3-year unlimited-hour residential warranty, with limited lifetime frame and deck-shell coverage, subject to manufacturer terms.
